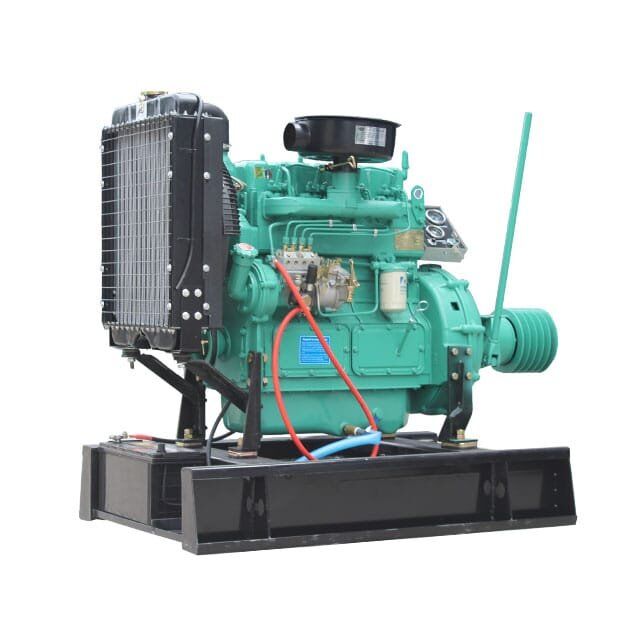

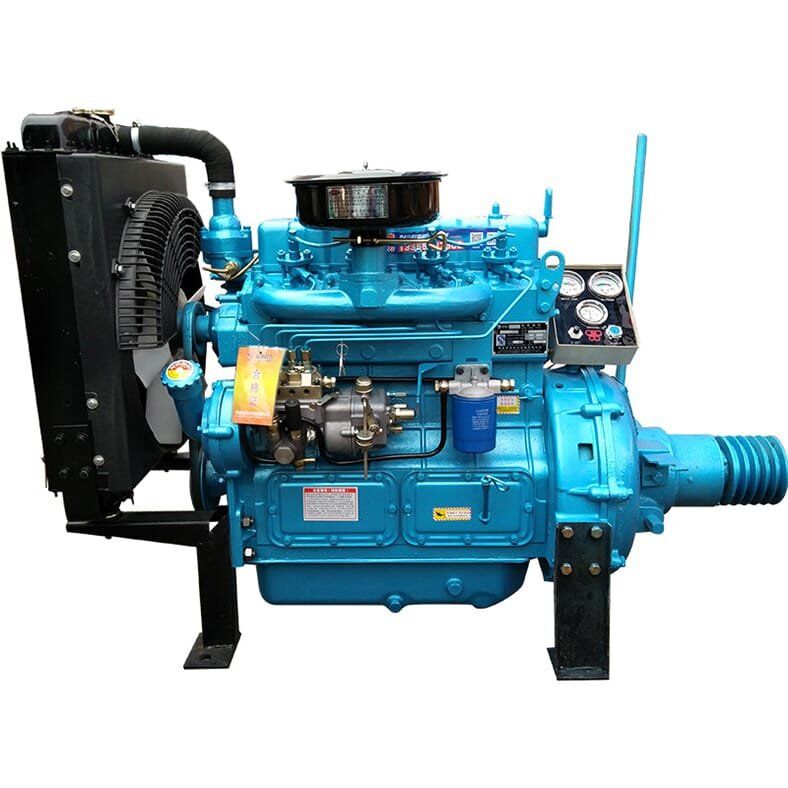

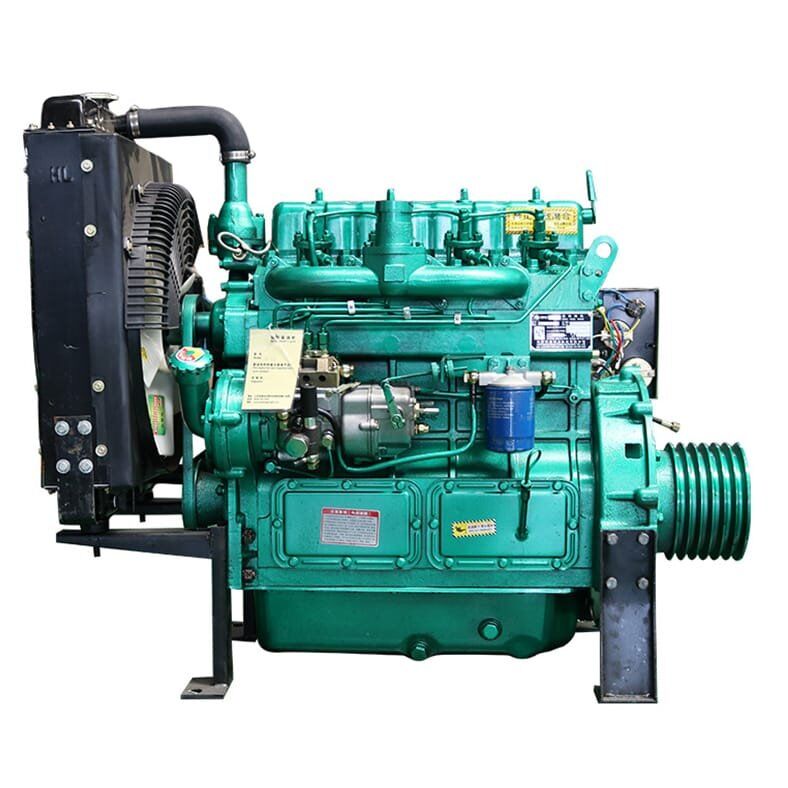

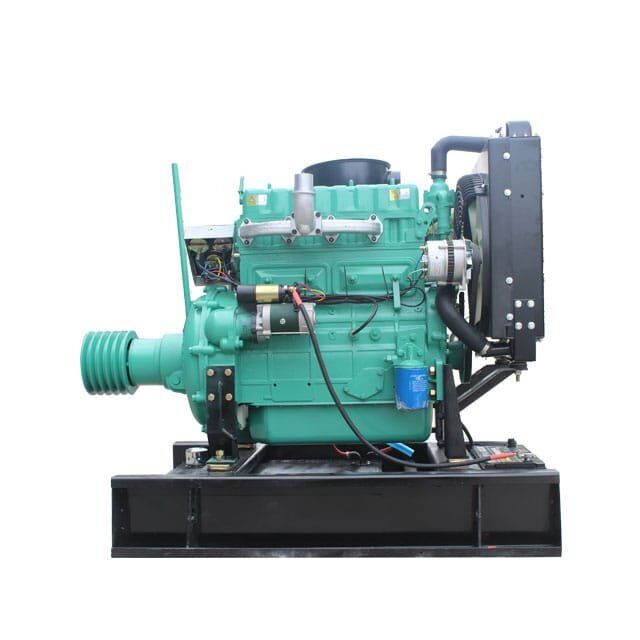

Ricardo ZH4100P Diesel Engine

General Features:

◆ Engine Model: 495P/K4100P/ZH4100P/K4102P/ZH4102P

◆ Engine Power: 30kw/40hp

◆ Engine Speed: 1500/1800/2000rpm

◆ Engine Optional: Fuel tank, belt pulley/PTO shaft, Automatic controller

◆ Radiator 40℃ max, fans are driven by belt, with safety guard

◆ 12V charge alternator

◆ Dry-type air filter, fuel filter, oil filter

Additional information

NO.	Model	ZH4100P
1	Type	Four-stroke, water-cooled, in-line, direct injection combustor
2	Cylinder No.- Bore×Storke（mm）	4-100×115
3	Displacement（L）	3.61
4	Compression Ratio	17:1
5	Ignition Sequence	1-3-4-2
6	Intake Mode	Naturally
7	12-hour power（KW/r/min）	30.1/1500
8	Maximum No-load Speed（r/min）	≤1875
9	Minimum No-load Stable Speed（r/min）	≤550
10	Mean Effective Pressure（kpa）	680
11	Fuel Consumption Rate（g/kW·h）	≤248.8
12	Oil Consumption Rate（g/kW·h）	≤2.04
13	Exhaust Temperature（。C）	≤500
14	Crankshaft Steering	Counterclockwise（From the power output）
15	Cooling Mode	Forced water cooling
16	Lubrication Mode	Pressure spatter compound
17	Starting Mode	Electrical start
18	Net Weight (kg)	380
