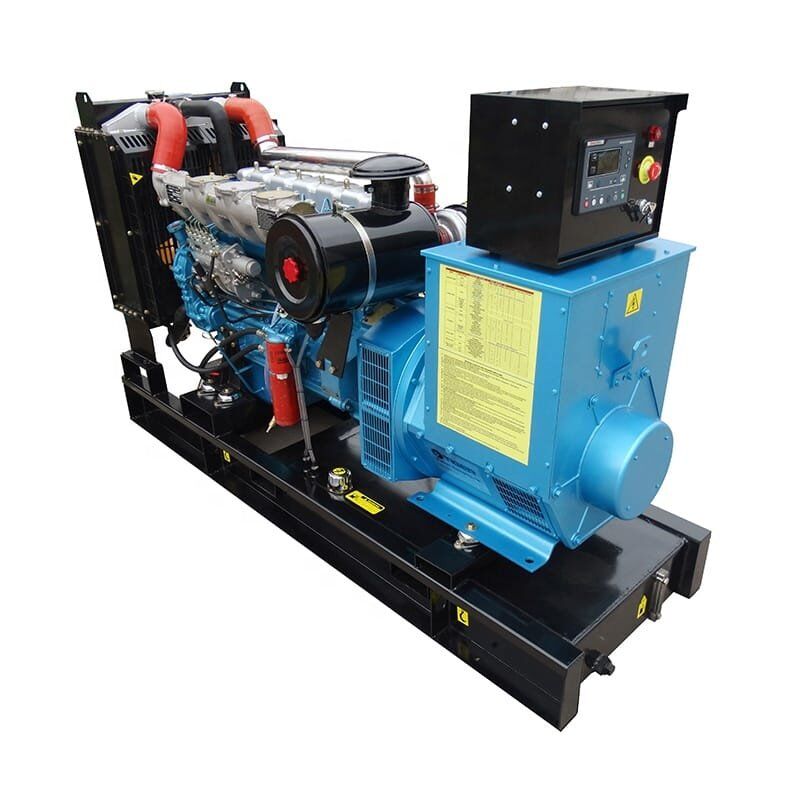

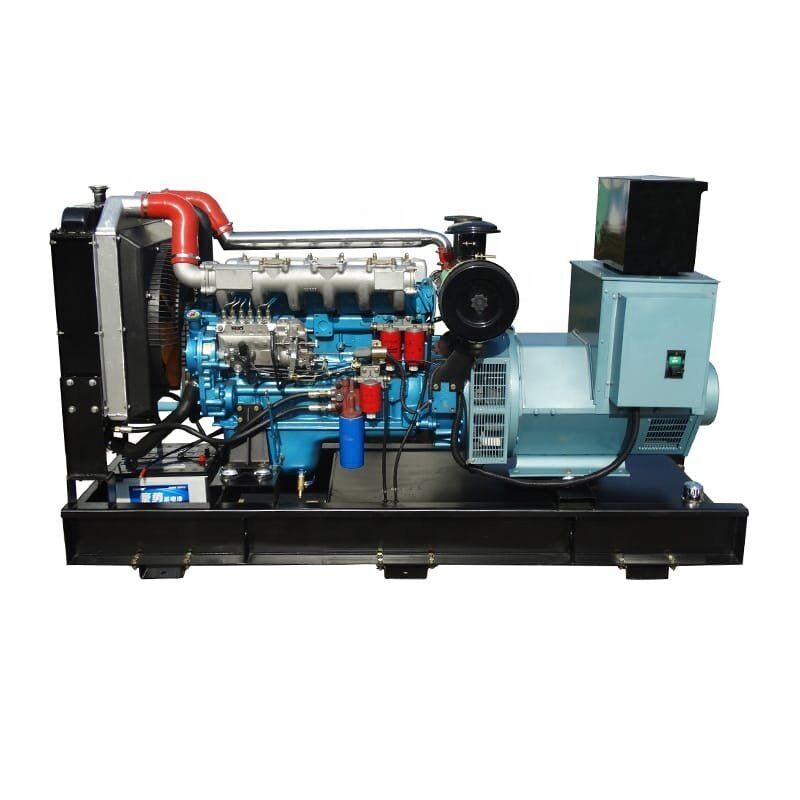

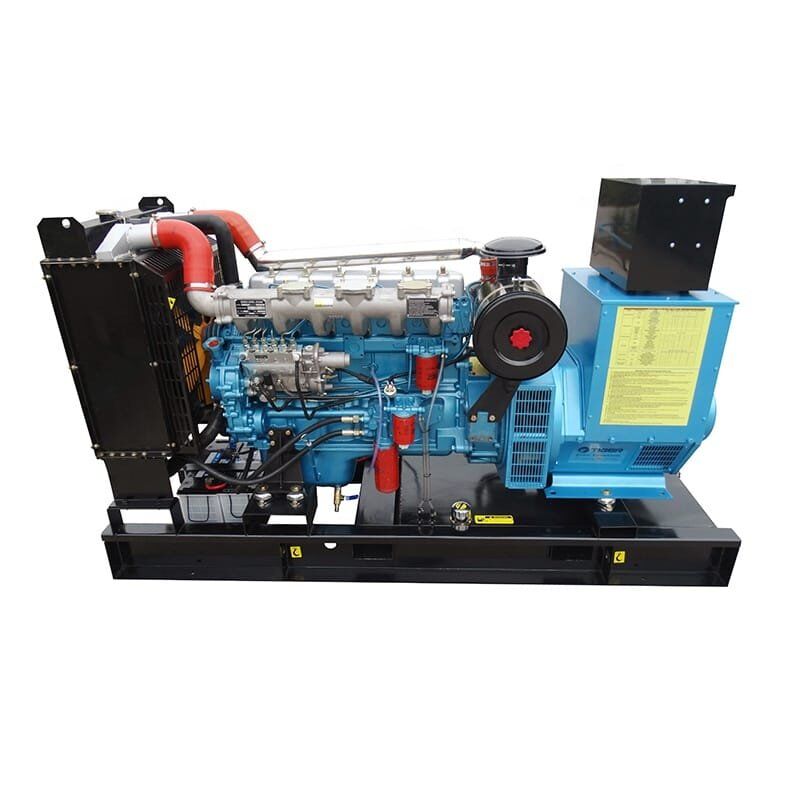

Ricardo 100KW Diesel Generator

MODEL	JWR100GF
Prime Power (50Hz)	100KW	125KVA
Standby Power (50Hz)	110KW	137.5KVA

Voltage (V)		Hz	Phase	Power Factor （cos￠）	Prime Amps （A）	Prime Ratings （KW/KVA）
440	254	50	3	0.8	164.02	100	137.5
415	240	50	3	0.8	173.91	100	137.5
400	230	50	3	0.8	180.43	100	137.5
380	220	50	3	0.8	189.92	100	137.5

• Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97（eqv ISO8528）; A 10% overload capability is available for a period of 1 hour within a 12-hour period of
• Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the durationof a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.



Weifang Junwei Machinery Co., Ltd provides a full line of brand new and high quality products. Each and every generator is strictly factory tested. Warranty is according to our standard conditions: ①12 months, counted on the day Junwei Machinery sold to the first buyer; ② One year after installation; ③ 1000 running hours (accumulated); subject to the earlier one. Service and parts are available from Junwei Machinery or distributors in your location.

Manufacturer / Model： Weifang Ricardo R6105AZLD, 4-stoke

Air Intake System： Turbocharged

Type： Four-stroke、Direct injection、6 Cylinders、Wet cylinder、Water cooling

Cylinder Type: Water-cooled cylinder liner

Start mode：Electric starting

Cooling mode：Closed water cooling

Displacement： 6.75

Bore and Stroke：105*125(mm)

Compression Ratio： 16.0:1

Rated RPM： 1500rpm

Max. Standby Power：121KW

Governor Type： Electronic / Mechanical

Max Back Pressure: 10kPa

Max Intake Restriction: 5kPa

100%( Prime Power) Load: 218g/kw.h

Total Oil Capacity: 21L

Total Coolant Capacity: 24L

Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.

Manufacturer： WEIFANG JUNWEI MACHINERY CO., LTD

Number of Phase：3

Connecting Type： 3 phase and 4 wires,”Y” type connecting

Number of bearing: 1

Power factor: 0.8

Protection grade: IP23 option,upon request

Altitude :≤1000m

Exciter type: Brushless,self-exciting

Insulation class: H

Telephone influence factor(TIF): ≤50

THF: ≤2%

Alternator Capacity：125 KVA

Alternator Efficiencies: 85%

Air Cooling Flow：0.09m3/s

Adjusting rate of stable voltage：±0.5%

Voltage Regulation: ≥±5%

Voltage Regulation, Stead State: ≤±1%

Sudden Voltage Warp: ≤+20%

Sudden Voltage Warp: ≤-15%

Voltage Stable Time: ≤5S

Voltage unbalance: ≤1%

Frequency Regulation, Stead State: ≤5%

Frequency Waving: ≤0.5%

Sudden Frequency Warp: ≤+10%

Transient frequency deviation: ≤-7%

Frequency Recovery Time: ≤3S

Engine: ◇Engine Heater	◇ Battery Charger	◇ Air preheater
Alternator: ◇Alternator Heater	◇ PMG
Electrical System:◇Remote Control Panel	◇ Automatic Transfer Switch	◇ Paralleling System
Type: ◇Rainproof Type	◇ Soundproof Type	◇ Trailer Type
Other: ◇Spare Parts	◇ Daily Fuel Tank
