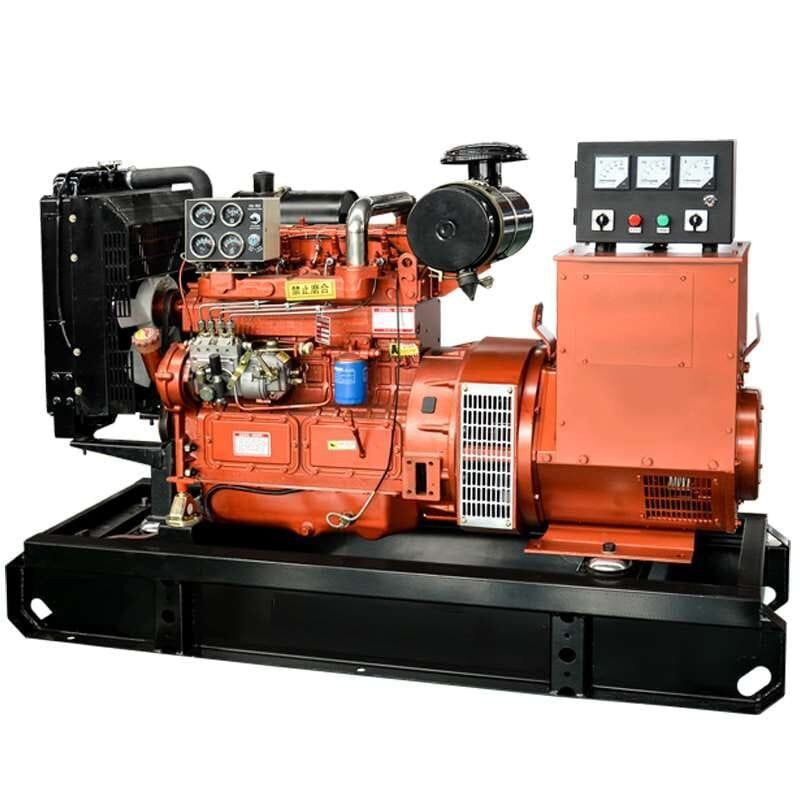

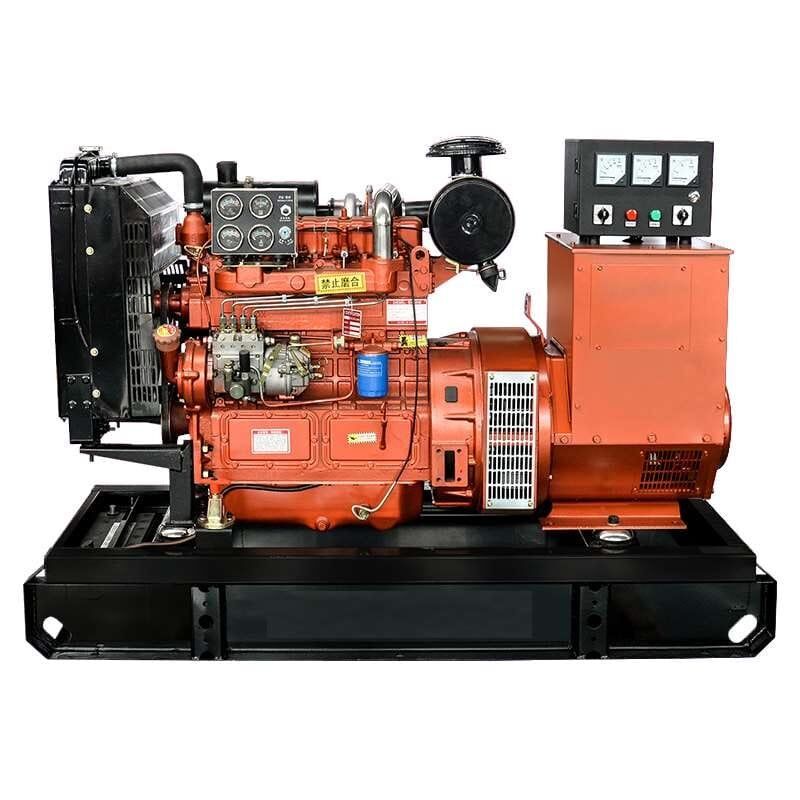

General Features:
◆ Engine(Weifang Ricardo ZH4100ZD)
◆ Radiator 40℃ max, fans are driven by belt, with safety guard
◆ 24V charge alternator
◆ Alternator: single bearing alternator, IP23, insulation class H/H
◆ Absorber
◆ Dry type air filter, fuel filter, oil filter
◆ Main line circuit breaker
MODEL |
JWR40GF |
|
Prime Power (50Hz) |
40KW |
50KVA |
Standby Power (50Hz) | 44KW |
55KVA |
Voltage (V) |
Hz |
Phase |
Power Factor
(cos¢) |
Prime Amps
(A) |
Prime Ratings
(KW/KVA) |
||
440 |
254 | 50 | 3 | 0.8 | 65.61 | 40 |
50 |
415 |
240 | 50 | 3 | 0.8 | 69.56 | 40 | 50 |
400 |
230 | 50 | 3 | 0.8 | 72.17 | 40 |
50 |
380 | 220 | 50 | 3 | 0.8 | 75.97 | 40 |
50 |
Weifang Junwei Machinery Co., Ltd provides a full line of brand new and high quality products. Each and every generator is strictly factory tested. Warranty is according to our standard conditions: ①12 months, counted on the day Junwei Machinery sold to the first buyer; ② One year after installation; ③ 1000 running hours (accumulated); subject to the earlier one. Service and parts are available from Junwei Machinery or distributors in your location.
Manufacturer / Model: Weifang Ricardo ZH4100ZD, 4-stoke
Air Intake System: Turbocharged
Type: Four-stroke、Direct injection、4 Cylinders、Wet cylinder、Water cooling
Cylinder Type: Water-cooled cylinder liner
Start mode:Electric starting
Cooling mode:Closed water cooling
Displacement: 4.33
Bore and Stroke:100*115(mm)
Compression Ratio: 16.0:1
Rated RPM: 1500rpm
Max. Standby Power:46.2KW
Governor Type: Electronic / Mechanical
Max Back Pressure: 10kPa
Max Intake Restriction: 5kPa
100%( Prime Power) Load: 221g/kw.h
Total Oil Capacity: 8L
Total Coolant Capacity: 16L
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
Manufacturer: WEIFANG JUNWEI MACHINERY CO., LTD
Number of Phase:3
Connecting Type: 3 phase and 4 wires,”Y” type connecting
Number of bearing: 1
Power factor: 0.8
Protection grade: IP23 option,upon request
Altitude :≤1000m
Exciter type: Brushless,self-exciting
Insulation class: H
Telephone influence factor(TIF): ≤50
THF: ≤2%
Alternator Capacity:50 KVA
Alternator Efficiencies: 85%
Air Cooling Flow:0.09m3/s
Adjusting rate of stable voltage:±0.5%
Voltage Regulation: ≥±5%
Voltage Regulation, Stead State: ≤±1%
Sudden Voltage Warp: ≤+20%
Sudden Voltage Warp: ≤-15%
Voltage Stable Time: ≤5S
Voltage unbalance: ≤1%
Frequency Regulation, Stead State: ≤5%
Frequency Waving: ≤0.5%
Sudden Frequency Warp: ≤+10%
Transient frequency deviation: ≤-7%
Frequency Recovery Time: ≤3S
Engine: ◇Engine Heater | ◇ Battery Charger | ◇ Air preheater |
Alternator: ◇Alternator Heater | ◇ PMG | |
Electrical System:◇Remote Control Panel | ◇ Automatic Transfer Switch | ◇ Paralleling System |
Type: ◇Rainproof Type | ◇ Soundproof Type | ◇ Trailer Type |
Other: ◇Spare Parts | ◇ Daily Fuel Tank |
